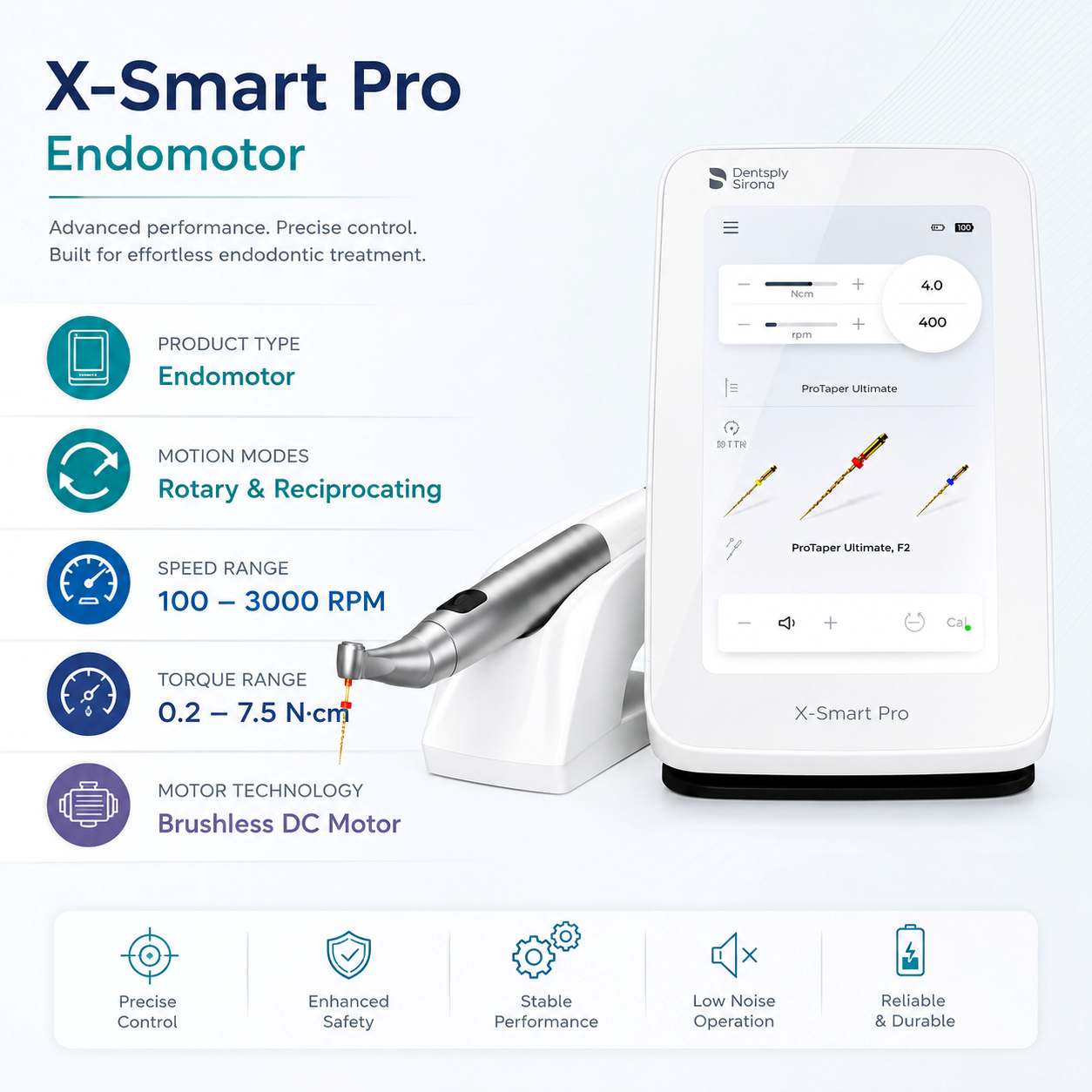

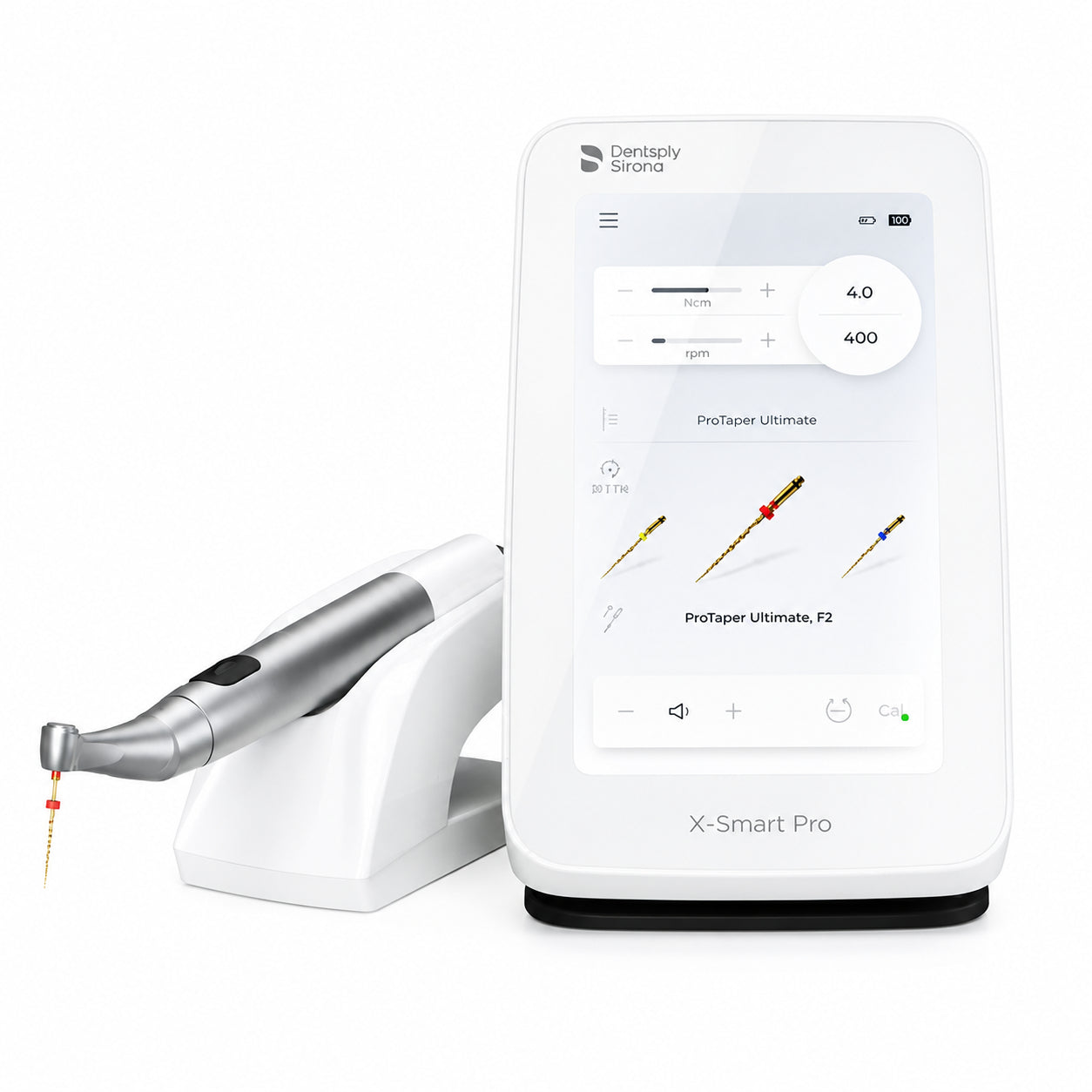

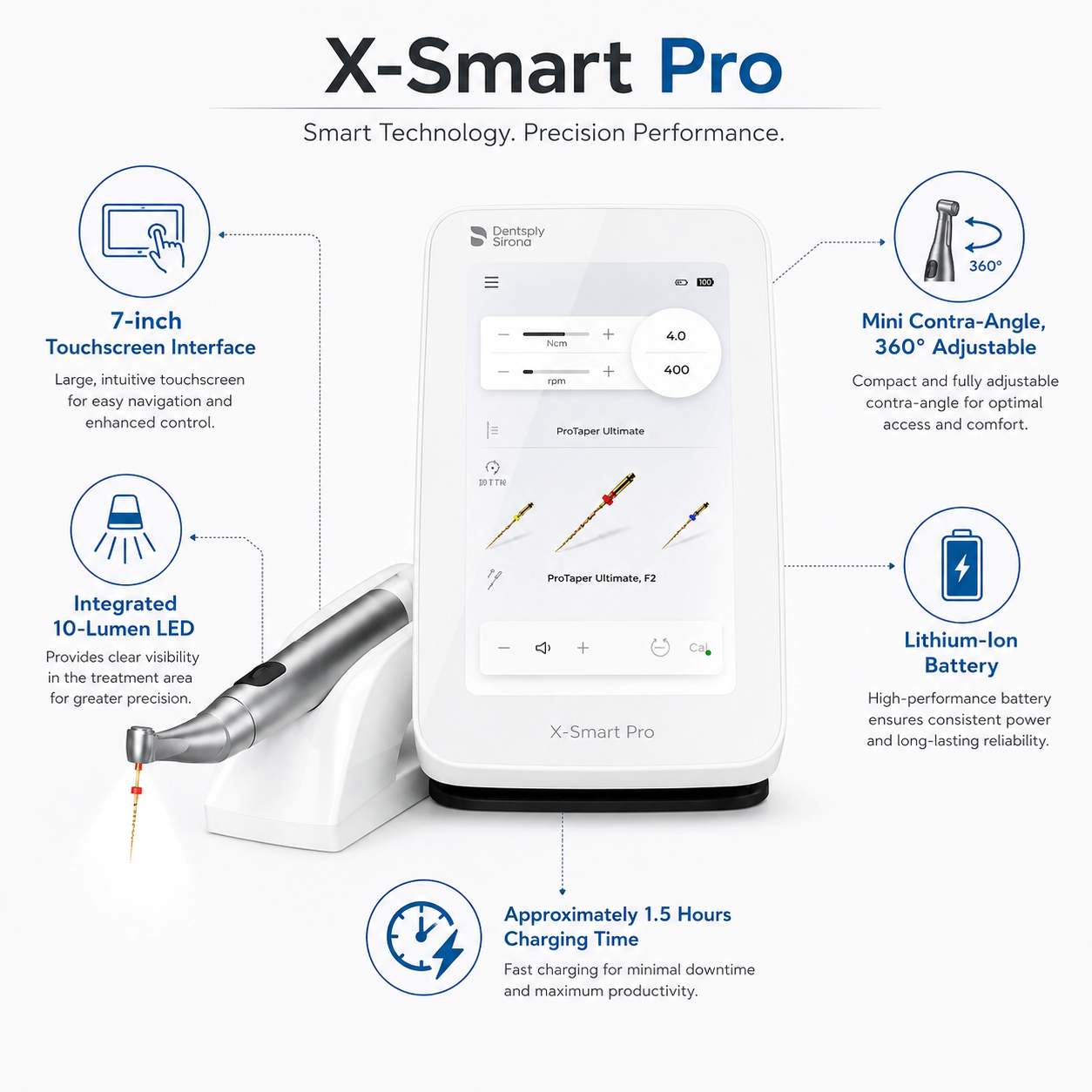

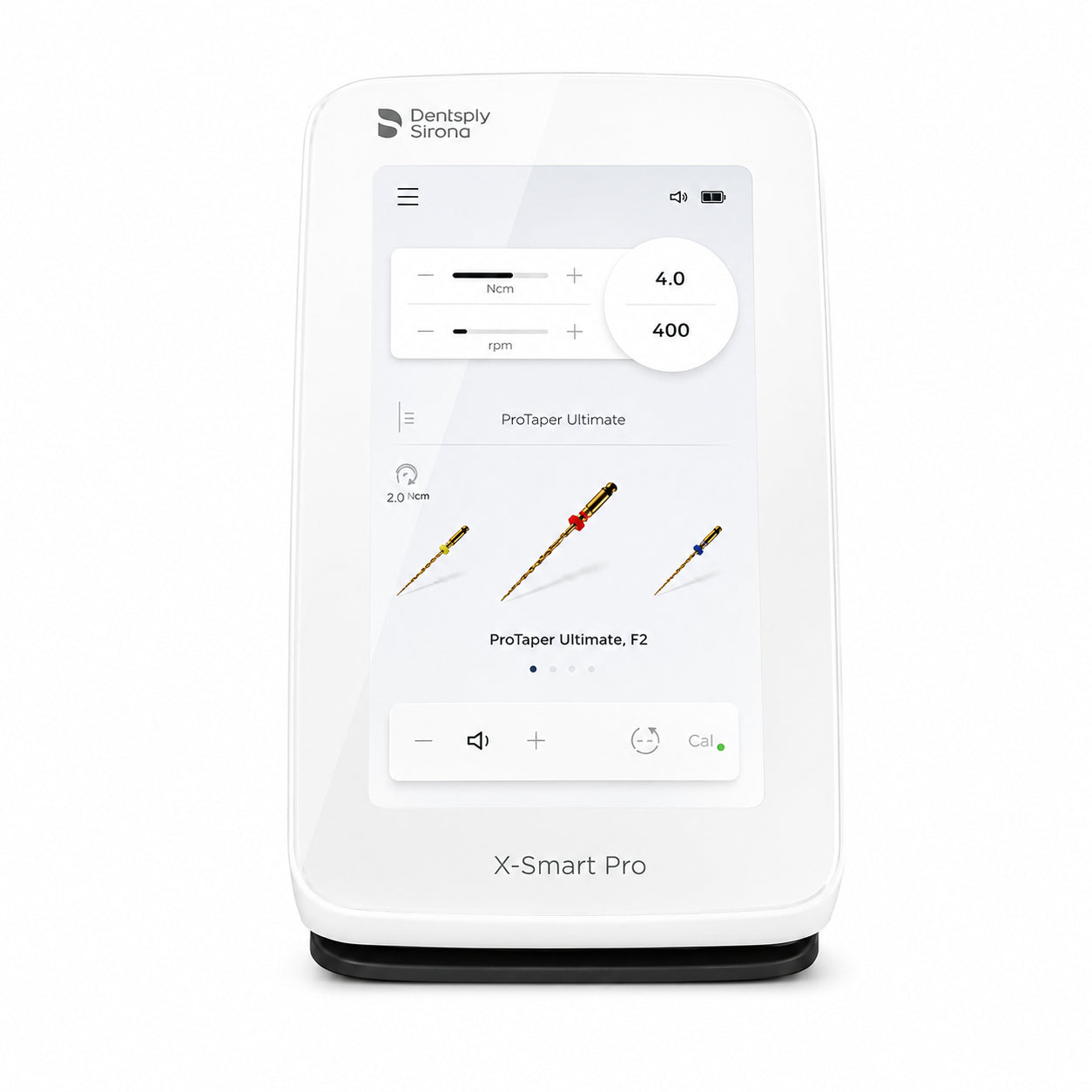

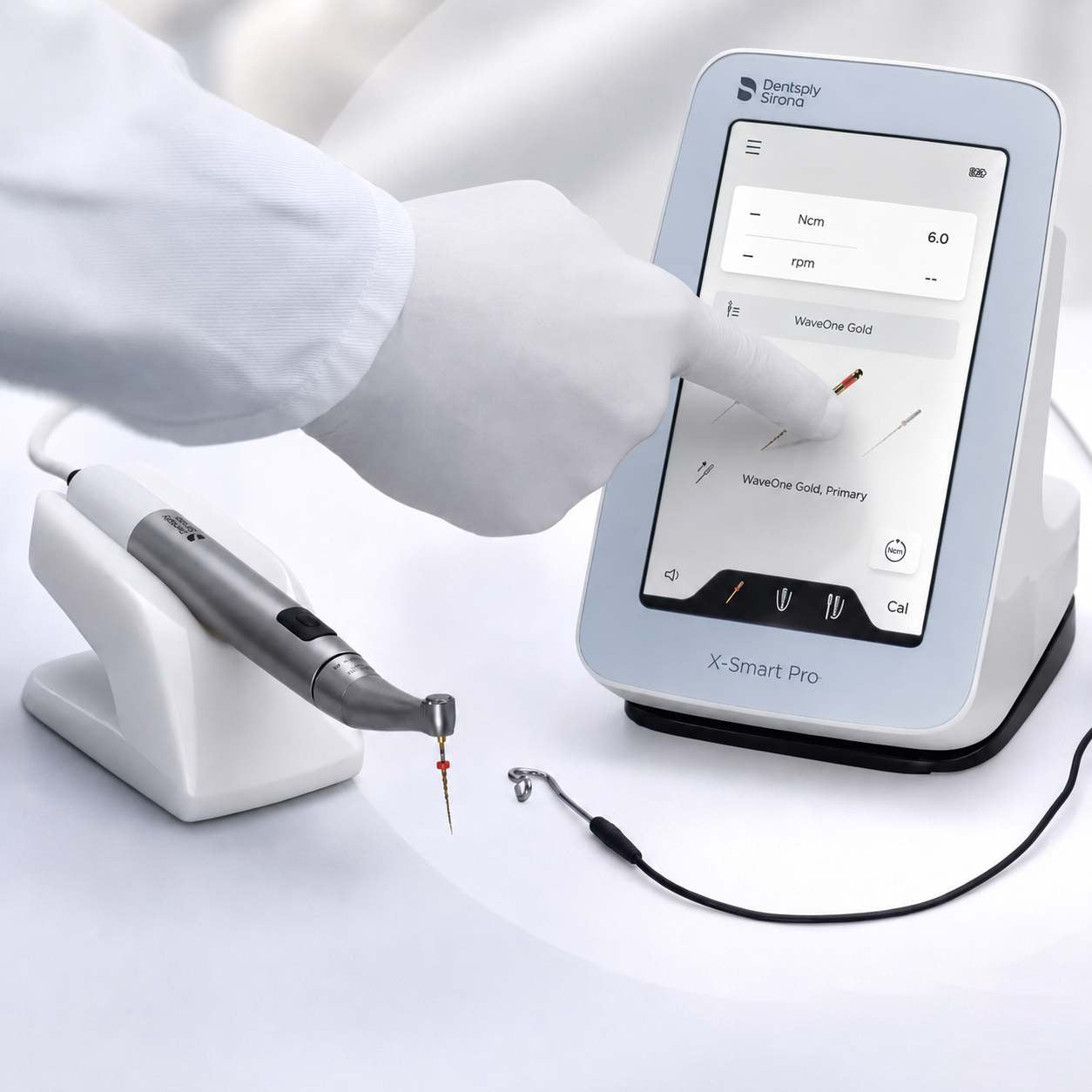

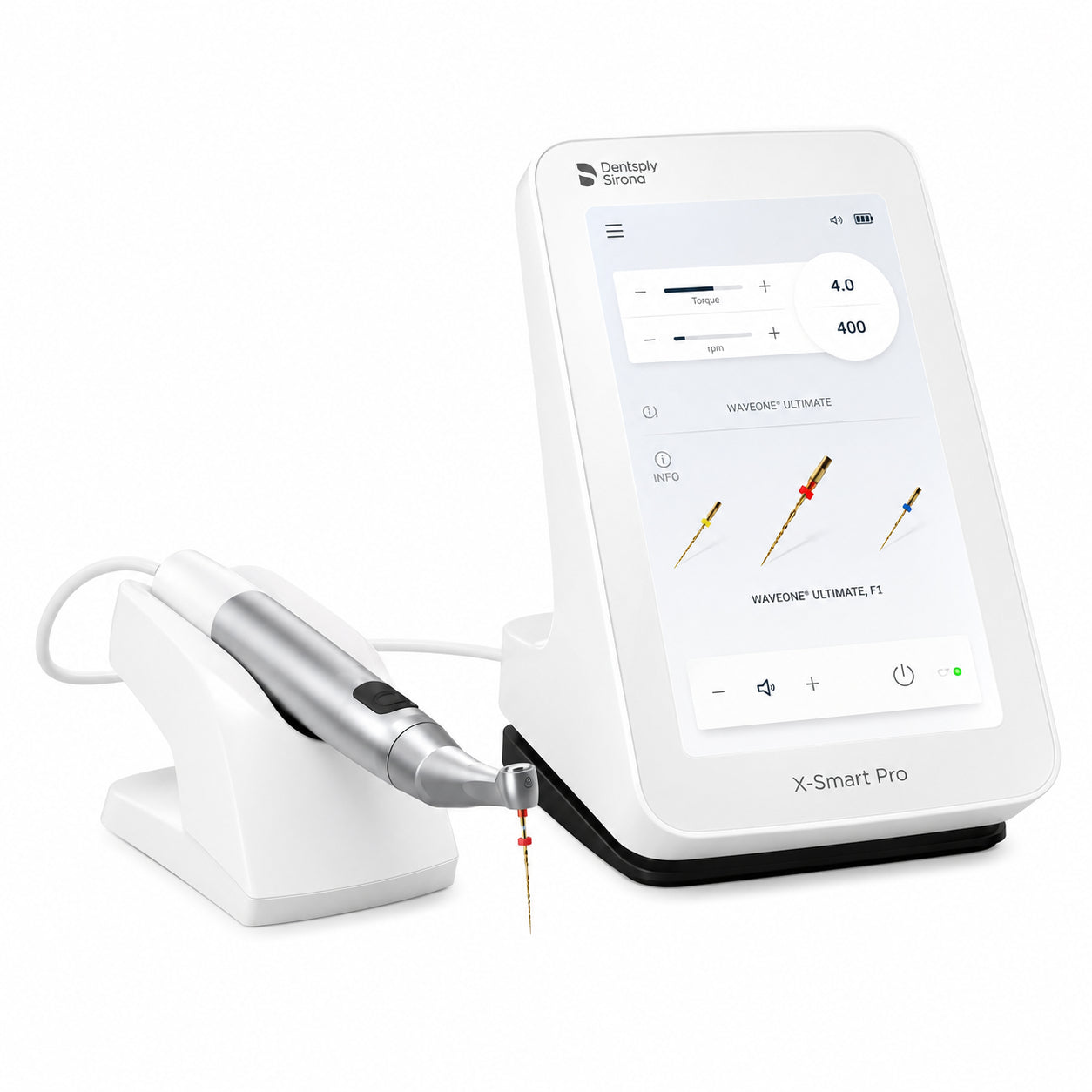

Dentsply X-Smart Pro Endomotor

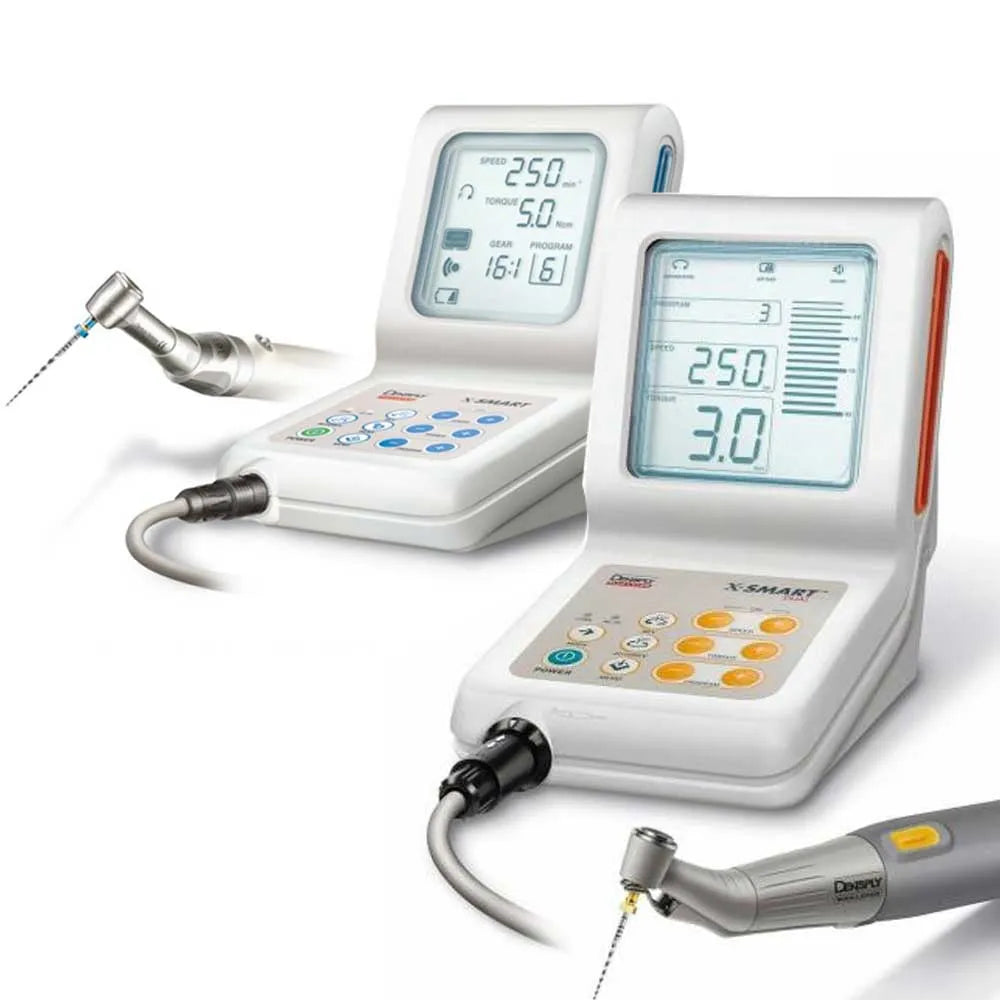

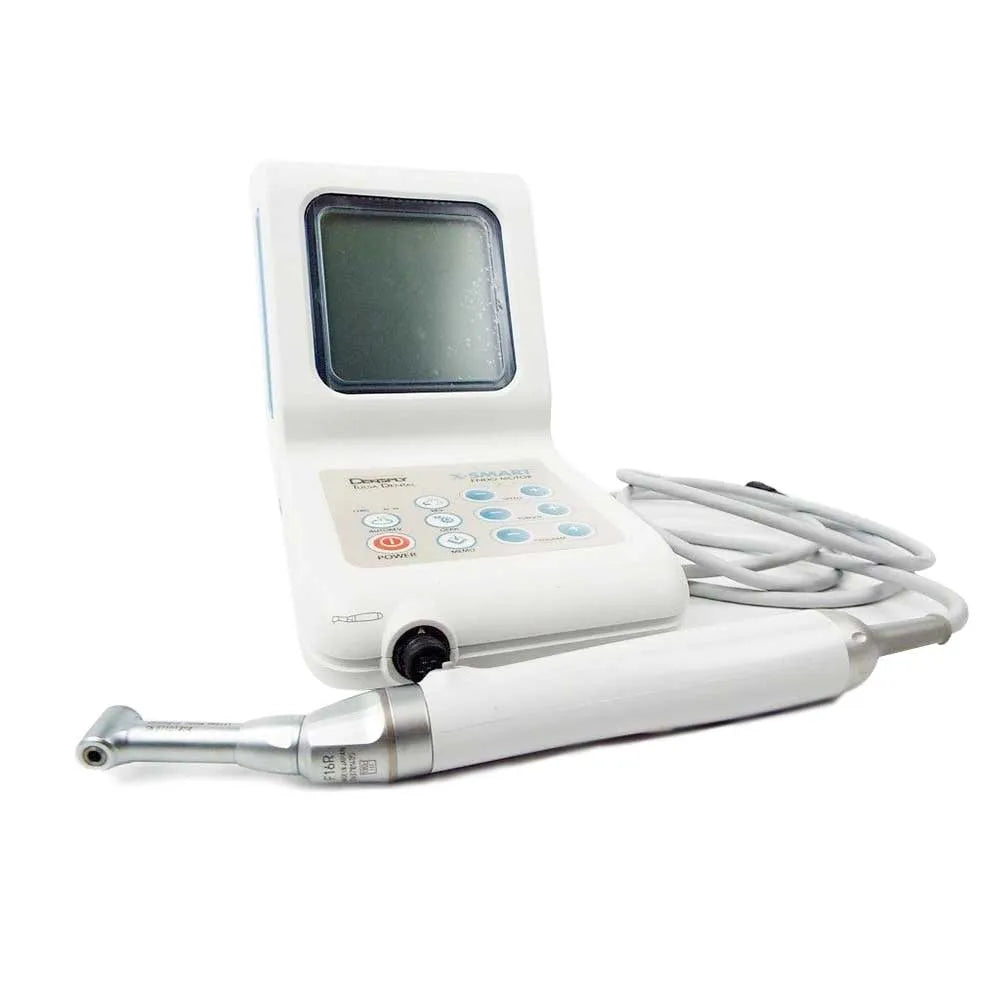

Dentsply X Smart Endomotor is one of the best endodontic micromotors designed specifically to drive. This simple, compact and lightweight device can be adapted to the needs of your endodontic practice. X Smart operates on a battery or electrical power. The battery takes about 5 hours to reach full charge and offers 2 hours of use time. The LCD screen offers a clear display and is angled to facilitate easy visualization during the biomechanical preparation of the root canal. The various settings available on the device can be used to control the speed, torque, gear ratio, direction of file rotation, and the auto-reverse function. 9 programmable settings are available on this smart device to personalize the settings on your endomotor. In addition to this, there appears a graduated bar, which denotes, in real-time, the load being applied to the rotary instrument and audible warning indicators.

Features:

• Compact and Lightweight unit
• Operates on battery or electrical power
• Provides easy visualization
• Operates on battery or electrical power
• Battery recharging time: approx. 5 hours
• Time of use on battery: approx. 2 hours
• Supplied with a 16:1 contra-angle
• Operates without a pedal (sold separately)

Key Specifications:

• Speed range : 120 - 800rpm
• Torque : 0.6 - 5.2Ncm
• 9 adjustable program selections
• 16:1 compact contra-angle
• Handpiece weight - 92 grams

Packaging:

• 1 x Control Unit
• 1 x Handpiece
• 1 x Contra Angle 16:1
• 1 x Handpiece Stand
• 1 x AC Adapter
• 1 x F-Type Spray Nozzle
• 1 x Instruction Manual

Direction To Use:

• Align the B mark on the cord plug of the motor handpiece with the S mark on the motor handpiece connector.
• Insert the plug into the connector and ensure a secure connection.
• If using an AC adapter, connect it to the power connector with the B mark facing downward.
• Optionally, if using a foot pedal, securely insert its plug into the foot pedal connector with the S mark facing downward.
• If you prefer not to use the foot pedal, you can operate the device without it.
• To connect the contra-angle head, align the positioning pins of the head with the positioning slots on the motor handpiece.
• Insert the head until it clicks into place.
• When inserting a file into the chuck, push it in until it stops and lightly turn it until it engages with the latch mechanism. Push inward to ensure a secure click.
• To remove the file, depress the push-button and pull it out.
• The motor handpiece will start in reverse and automatically switch to forward rotation when the load is removed.
• To stop the motor handpiece, press the ON/OFF button or release the foot pedal (if connected).
• If desired, lubricate the contra-angle head following the manufacturer's instructions. Avoid lubricating before autoclaving.
• Refer to the user manual for further information and specific guidelines.
