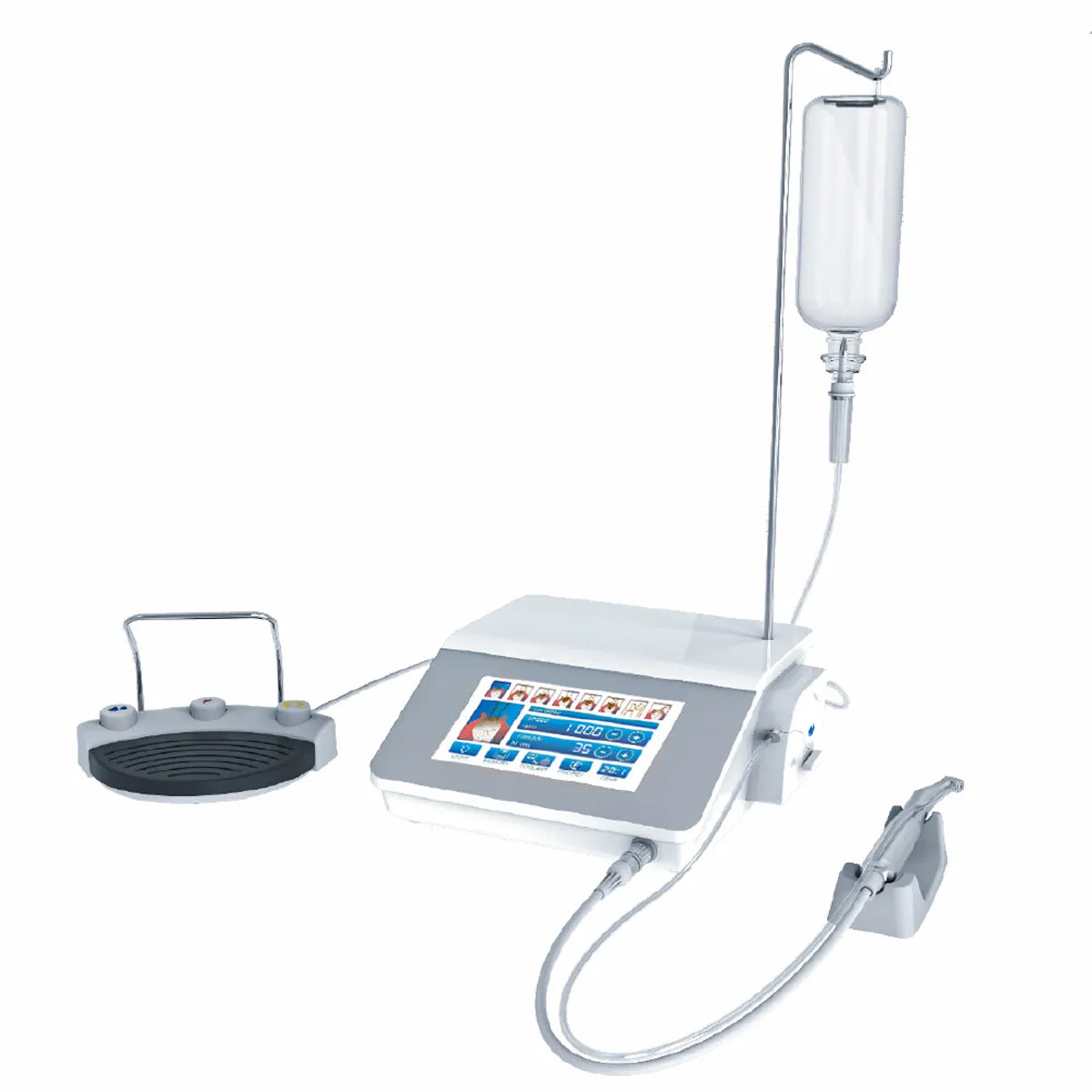

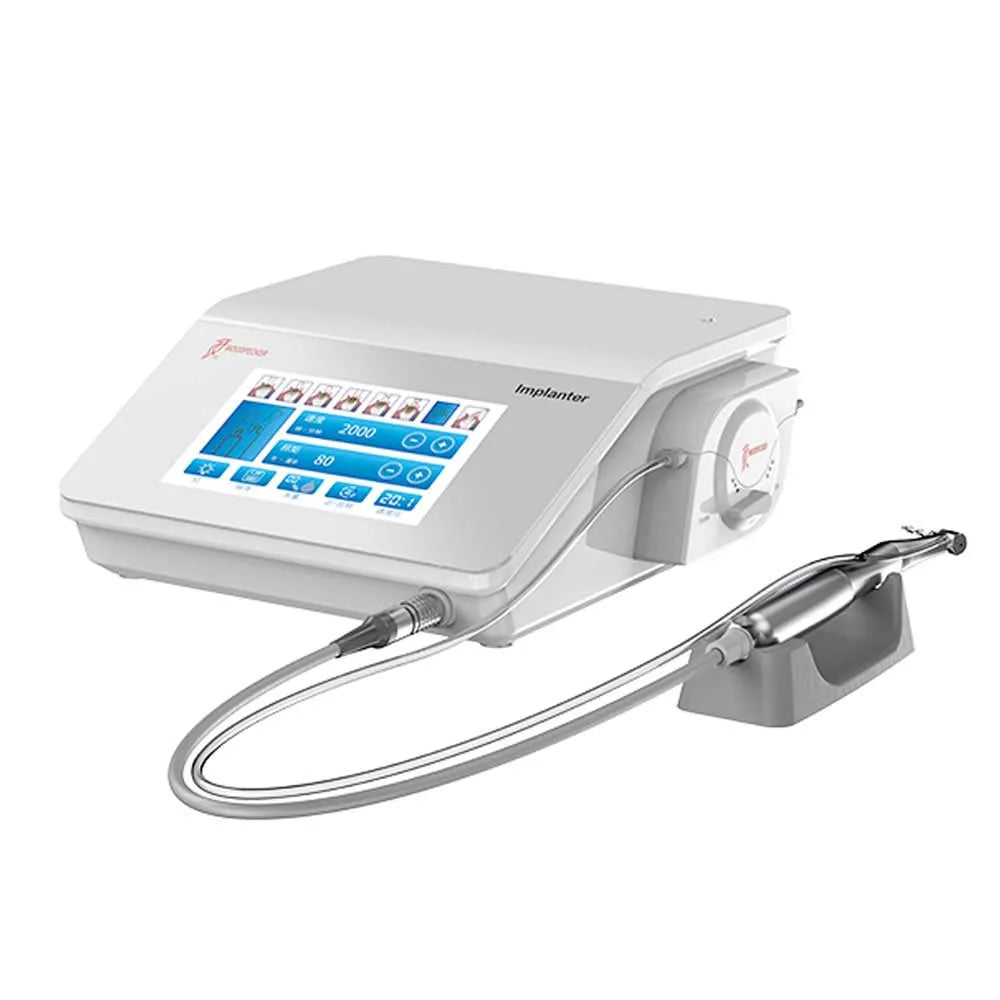

The Woodpecker Implanter Optic is a cutting-edge dental implantation device that combines advanced technology with user-friendly features. It is designed to facilitate precise and efficient implant surgeries, providing dentists with the tools they need for successful procedures. The device is equipped with a lowering tip, specifically designed to prepare the implant placement site, allowing for precise and accurate bed preparation. The inclusion of a large touchscreen enhances the usability of the device by providing a clear and easily navigable interface. The touch screen also offers excellent visualization of the preset values, making it convenient to monitor and adjust parameters during the procedure.
The Implanter Optic boasts an imported powerful Swiss motor, renowned for its reliability and performance. With a motor torque of 6.2Ncm, it ensures a reliable output torque of 80Ncm, providing the necessary strength for successful implantation procedures.
Both the motor and cable can be autoclaved, ensuring proper sterilization and maintaining a high level of hygiene. Additionally, the micro motor is lightweight, facilitating flexible operation and minimizing user fatigue. The device is accompanied by a flexible multi-function foot pedal, allowing for aseptic operation while freeing up the user's hands for optimal maneuverability. This foot pedal enhances the overall workflow and contributes to a more efficient and seamless surgical experience. To facilitate easy operation and ensure cleanliness, the Implanter Optic features a color touch screen with a glass surface. The touch screen provides an intuitive control panel, simplifying device management and enabling seamless navigation. The glass surface is easy to clean, ensuring a hygienic treatment environment. By implementing wiping disinfection, the device ensures the safety and sterility of the treatment area.
Woodpecker has prioritized balance in the design of the Implanter Optic, ensuring a comfortable and secure grip during complex surgeries. By achieving a balance between the weight of the contra-angle and motor, the device minimizes hand fatigue and maximizes control and precision.
Features:
- Intuitive user interface
- Motor with precision and strength
- Strong & stable contra-angle
- Flexible multi-function foot pedal
- Color touch screen with glass surface

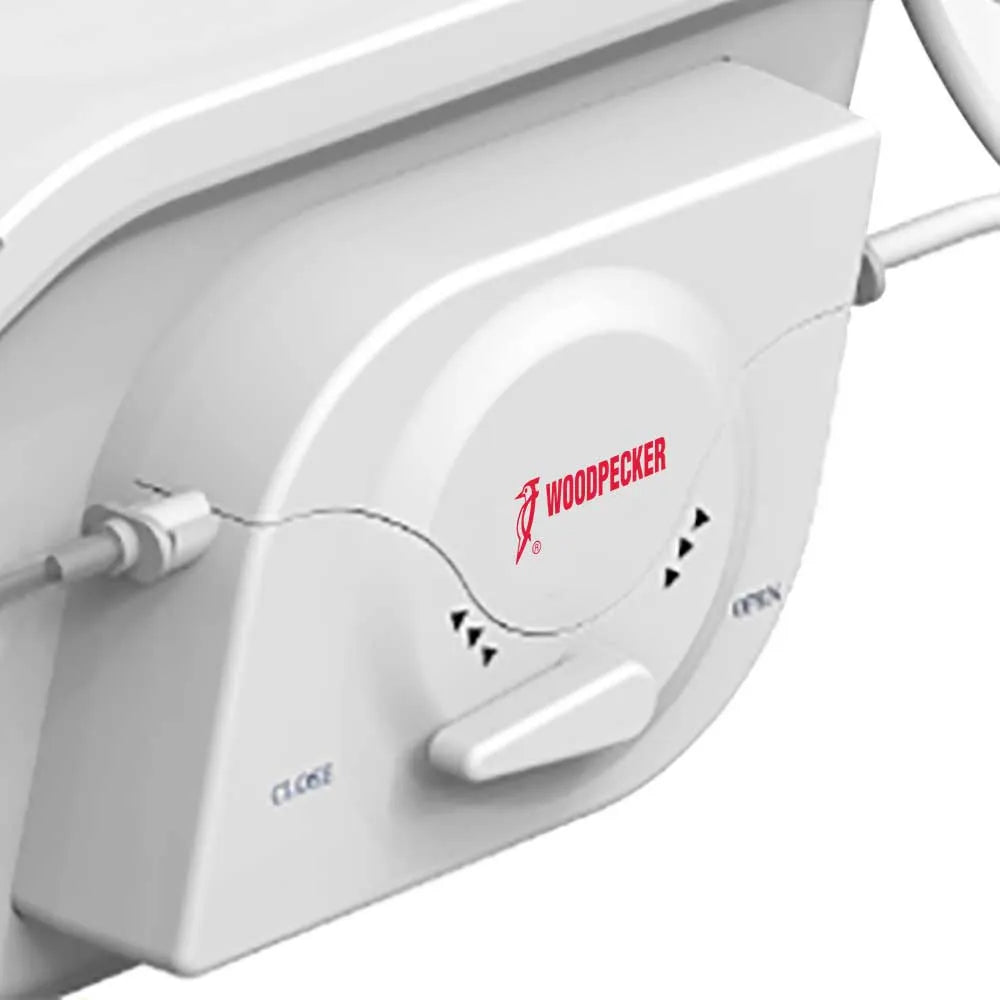

- Mute peristaltic pump
- Perfect balance
Key Specifications:
-
Rotation Speed Range - 300 - 40000rpm
-
Torque Range/Gear 20:1 - 5N.cm- 80Ncm
-
Max Pump Output - 110ml/min
-
Main Unit Dimensions - φ23.4mm*L91mm
-
Motor Weight - 140g
-
Power Supply - Ac220v 50/60Hz
-
Device for intermittent operation: 3 min ON,10 min OFF
-
Power supply voltage: 200-240V~
-
Power supply frequency: 50/60Hz
-
Software version: Implant-V1
-
Input power: 150VA
-
Fuses: 2×T1.6AL 250V
-
Applied parts: Contra-angle handpiece
-
Maximum Temperature: 41.8℃
-
Maximum water volume: 135ml/min
-
Dimension: 276mm*267mm*110mm
-
Environment temperature: +5~40℃
-
Relative humidity: 30%~75%
-
Atmosphere pressure:70kPa~106kPa
-
Device case material: PC+ABS
-
Handpiece material: brass
Storage: Store in a clean, dry, ventilated, non-corrosive atmosphere with a relative humidity of 10% to 93%, an atmospheric pressure of 70KPa to 106KPa, and a temperature of -20 °C to +55 °C;
Packaging:
- 1 x Physiodispenser
- 1 x Handpiece
- 1 x Foot Pedal with cable
- 1 x Handpiece Stand
Direction To Use:
Preparation:
-
- Ensure that the device is connected to a grounded electrical outlet.
- Verify that the cabling system meets the appropriate standards and requirements.
- Check that all accessories and components are properly assembled and in good working condition.
- Inspect the handpiece and cables for any signs of damage or wear.
Power On:
-
- Turn on the power supply to the Implanter Optic.
- The device will initiate the start-up process, and the color touch screen will display the main interface.
Setting Parameters:
-
- Navigate the menu options on the touch screen using the intuitive user interface.
- Adjust the necessary parameters for the specific implant surgery, such as speed and torque settings, using the preset values or manual input.
- Ensure that the parameters are appropriate for the patient and the specific dental implant procedure being performed.
Patient Preparation:
-
- Follow standard protocols for patient preparation, including proper disinfection and sterilization techniques.
- Position the patient comfortably in the dental chair, ensuring proper access to the treatment area.
Operating the Implanter Optic:
-
- Hold the contra-angle handpiece securely and place it in the patient's mouth.
- Activate the foot pedal to initiate the operation.
- Monitor the device's performance on the touchscreen display, ensuring that the parameters remain within the desired range.
- Follow the recommended operating times and intervals to prevent overheating or system malfunction.
Cleaning and Maintenance:
-
- After each use, power off the Implanter Optic and disconnect it from the power supply.
- Clean and disinfect the handpiece and other reusable components according to the manufacturer's instructions.
- Wipe the control panel and touch the screen with a damp cloth, avoiding any corrosive solutions.
- Store the device in a clean, dry, and well-ventilated area, following the recommended storage conditions.
