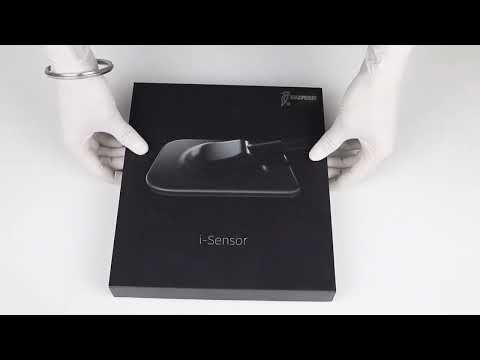

Woodpecker RVG H2 i Sensor (Compatible With Windows Only)

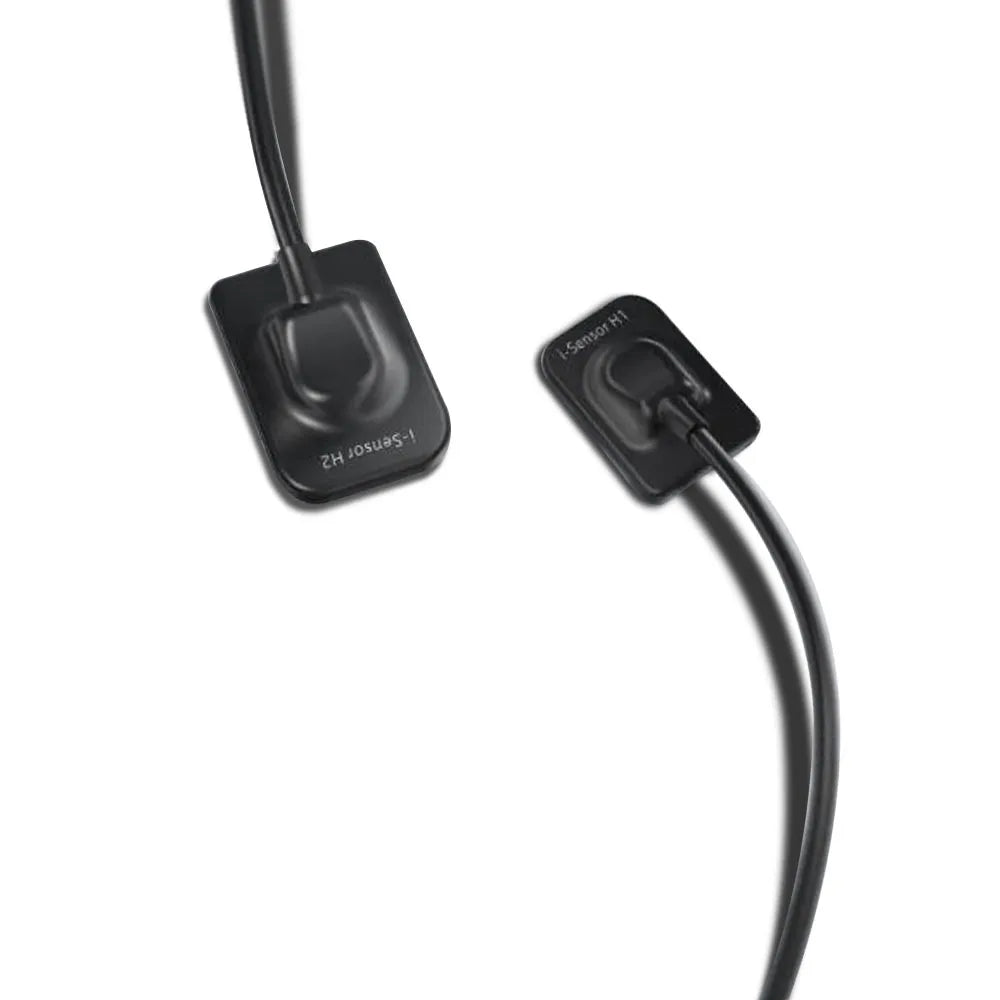

Woodpecker RVG i Sensor Size - 2 (Compatible With Windows Only)

Woodpecker RVG i Sensor, a revolutionary intraoral imaging solution that combines efficiency and affordability. With its user-friendly software and improved workflow efficiency, it enhances diagnosis, treatment, and treatment planning processes. This centralized imaging hub manages all patient images, including intra- and extra-oral radiographs and photographs. The sensor captures X-ray radiation and instantly converts it into high-quality digital data for immediate viewing. Trust in Woodpecker's legacy of imaging excellence and enjoy exceptional image capture with this easy-to-use solution for all your intraoral imaging needs.

Indications:

• Dental Diagnostics: The Woodpecker RVG i Sensor Size - 2 is used for capturing high-quality intraoral digital radiographs to aid in the diagnosis of dental conditions and treatment planning.
• Endodontics: The RVG i Sensor Size - 2 is valuable for capturing images during root canal treatments to visualize the root canal anatomy and monitor treatment progress.
• Prosthodontics: It assists in the evaluation of tooth morphology, occlusion, and fit of dental prostheses such as crowns, bridges, and implants.
• Orthodontics: The sensor is used to capture images for orthodontic treatment planning, assessing tooth alignment, and monitoring progress during treatment.
• Oral Surgery: It aids in the visualization of impacted teeth, pre-surgical planning, and post-surgical evaluations.
• Implantology: The RVG i Sensor Size - 2 is used to assess bone density and evaluate implant placement, ensuring precise positioning for successful implant procedures.
• Periodontics: It assists in the evaluation of periodontal health, detecting bone loss, and assessing the effectiveness of periodontal treatments.

Features:

• High-resolution imaging - 25lp/mm theoretical resolution
• C Mos Technology
• Thinnest sensor 4.4mm
• USB Cable - 2.7m long
• Durable and reliable: 80000+ bending test & IP68 protection rating
• Smart and powerful software
• Curved Edges to Avoid Patient Injury
• Highly Flexible Cable
• It has a Twain option. and the server function.
• Now there is no limit for computers connected to the software license.
• I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements

Key Specification:

• Power adapter input: 5V/USB interface
• Effective area: 26*36mm(H2)
• Pixel matrix size: 1300*1800mm(H2)
• Pixel size: 20μm
• Effective resolution ＞ 8lp/mm
• Specifications: 40.0*31.0*4.4mm(H2)
• Weight: 158g(H2)
• Detector Technology: APS CMOS
• Environment temperature: 5℃～ 40℃
• Relative humidity: 30% ～ 75% 1.9.3
• Atmospheric pressure：70kPa ～ 106kPa

• Windows®	Configuration
  Operating system	Windows® 7 or above
  Processor	Intel® Core 2
  Memory	2 GB or above
  Hard disk	320 GB or above
  USB port	4 high-speed USB 2.0 ports
  Display board	Nvidia chip graphics card or ATI discrete graphics card
  USB chip	Intel or NEC® / RENESAS®
  Display resolution	1280 x 1024
