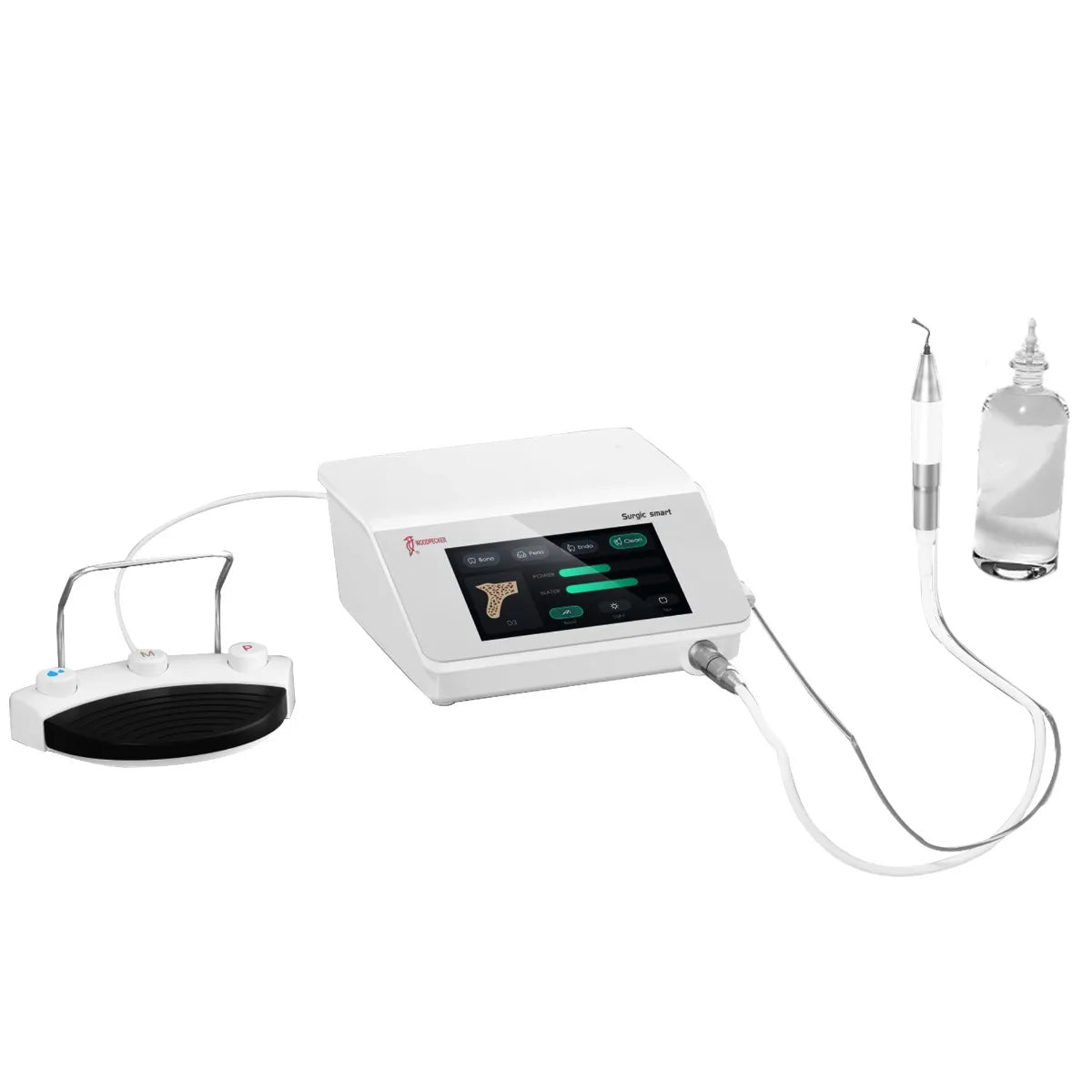

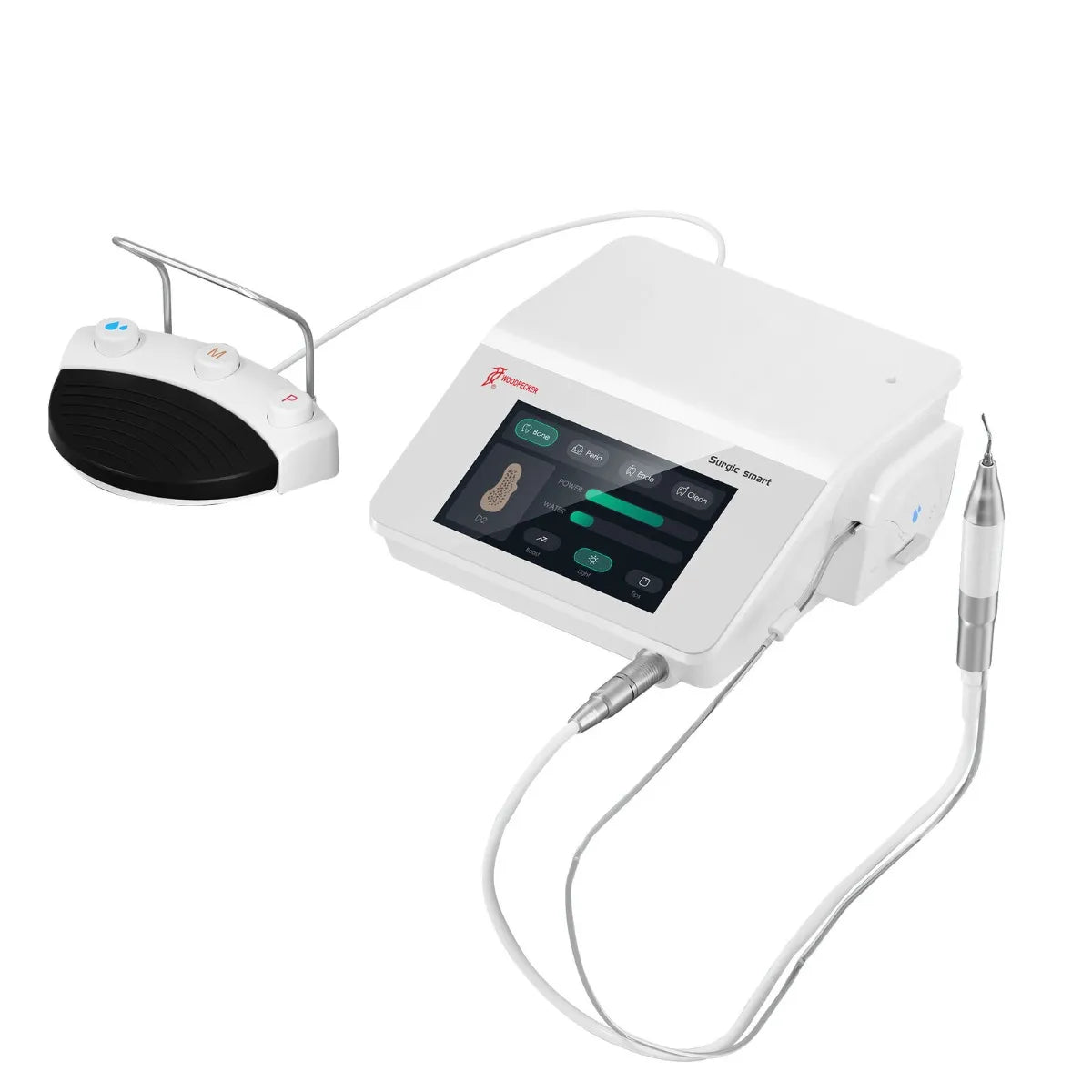

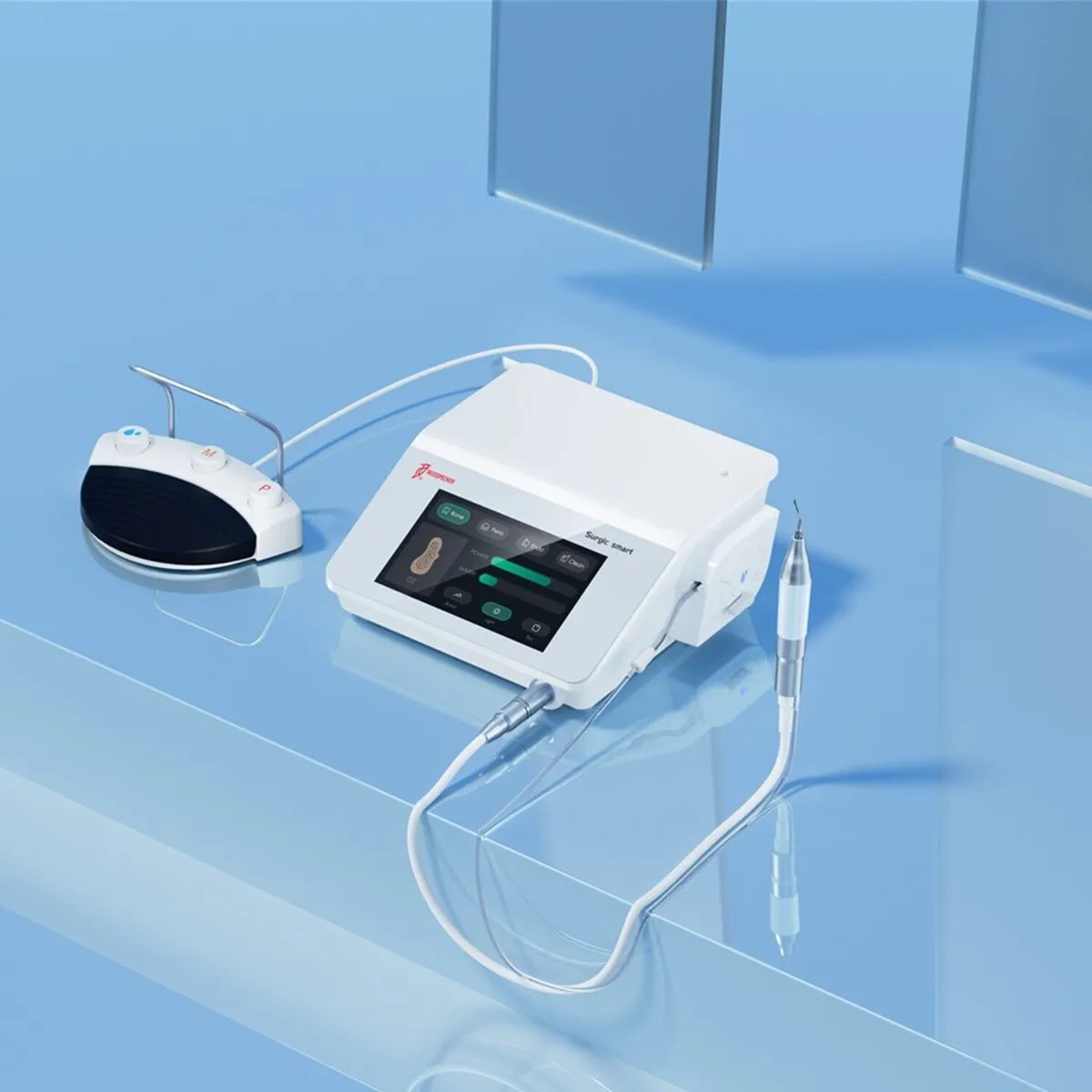

Woodpecker Surgic Smart Piezosurgery Unit

• Intelligent Design: Smartly engineered for precise and efficient dental surgical procedures.

• Upgraded Performance: Newly enhanced for increased power and effectiveness in clinical applications.

• Reliable Operation: Demonstrates unwavering dependability, ensuring consistent surgical outcomes.

• Sterilizable Water Pipe: Equipped with a sterilizable water pipe for a hygienic surgical environment.

• Multi-Function Foot Pedal: Allows for intuitive control, facilitating seamless operation.

• Ultra-Quiet Peristaltic Pump: Minimizes operational noise, ensuring a calm and comfortable experience.

• Compliance and Safety: Meets European Directive 93/42EEC, ensuring adherence to high medical device standards.

• Versatile Voltage Range: Compatible with power supplies ranging from ~100V to 240V at 50Hz/60Hz.

• Variable Flow Rate: Offers a flow rate range of 25 to 110ml per minute for precise surgical control

Key Specifications:

• Compliance: Directive 93/42EEC
• Ingress Protection Rating: Device: IPX1, Foot Pedal: IPX6 (EN60529)
• Software Version: BoneSurgical4-V1.0.0
• Operation Cycle: 60 seconds ON, 10 seconds OFF
• Power-Supply Voltage: ~100V-240V, 50Hz/60Hz
• Power Consumption: 170VA
• Fuses: 2×1.6AT, 250V
• Working Frequency: 24kHz~36kHz
• Flow: 25~110ml/min
• Applied Parts: Tips
• Additional Features: Sterilizable water pipe, Multi-function foot pedal, Ultra-quiet peristaltic pump
• Usage- In oral and maxillofacial surgery
• Contra Indication: Do not use the Surgic smart on patients with pace-makers or other implantable electronic devices. The same requirement applies also to the operator.
  An electrosurgical knife could interfere with correct functioning of the device.

Packaging:

• 1 x Device
• 1 x Multi-function foot pedal
• 2 x Brine bottle connector
• 1 x Hook
• 8 x Pump tube
• 1 x Peristaltic pump
• 2 x Surgic smart handpiece
• 2 x Silicone handpiece holder
• 4 x Connection for the cord and tube of the peristaltic pump
• 1 x Torque wrench
• 2 x Sterilize box
• 1 x Power-supply cable

Direction To Use:

Setup and Preparations:

• Ensure the unit is placed on a stable surface near the dental workstation.
• Connect the power supply to the unit and plug it into a suitable electrical outlet (100V-240V, 50Hz/60Hz).
• Check that the foot pedal is connected securely to the unit.
• Fill the water reservoir with a suitable sterile saline solution.
• Insert the desired tip securely into the handpiece.

Power On:

• Switch on the Surgic Smart Piezosurgery Unit using the power button.
• Verify that the unit displays the correct software version (BoneSurgical4-V1.0.0).

Adjust Settings:

• Set the desired operational mode on the control panel, if applicable.
• Adjust the power level using the appropriate controls.

Sterilization:

• Ensure that the applied parts (tips) are properly sterilized before use. Follow recommended sterilization protocols.

Positioning and Operation:

• Position the handpiece with the selected tip in the desired area for the surgical procedure.
• Use the multi-function foot pedal for control. Press to activate and release to deactivate.

Perform the Procedure:

• Apply gentle pressure and move the handpiece in a controlled manner over the target area.
• Monitor the progress of the procedure and adjust settings as needed.

Monitor Water Flow:

• Ensure a steady flow of water to the tip for cooling and irrigation during the procedure. Adjust as necessary.

Post-Procedure:

• After completing the procedure, switch off the unit using the power button.
• Disconnect the handpiece and remove the used tip for proper disposal or re-sterilization.

Cleaning and Maintenance:

• Clean the handpiece and unit according to the manufacturer's guidelines.
• Empty and clean the water reservoir after each use.

Shutdown:

• Switch off the Surgic Smart Piezosurgery Unit and unplug it from the electrical outlet.
