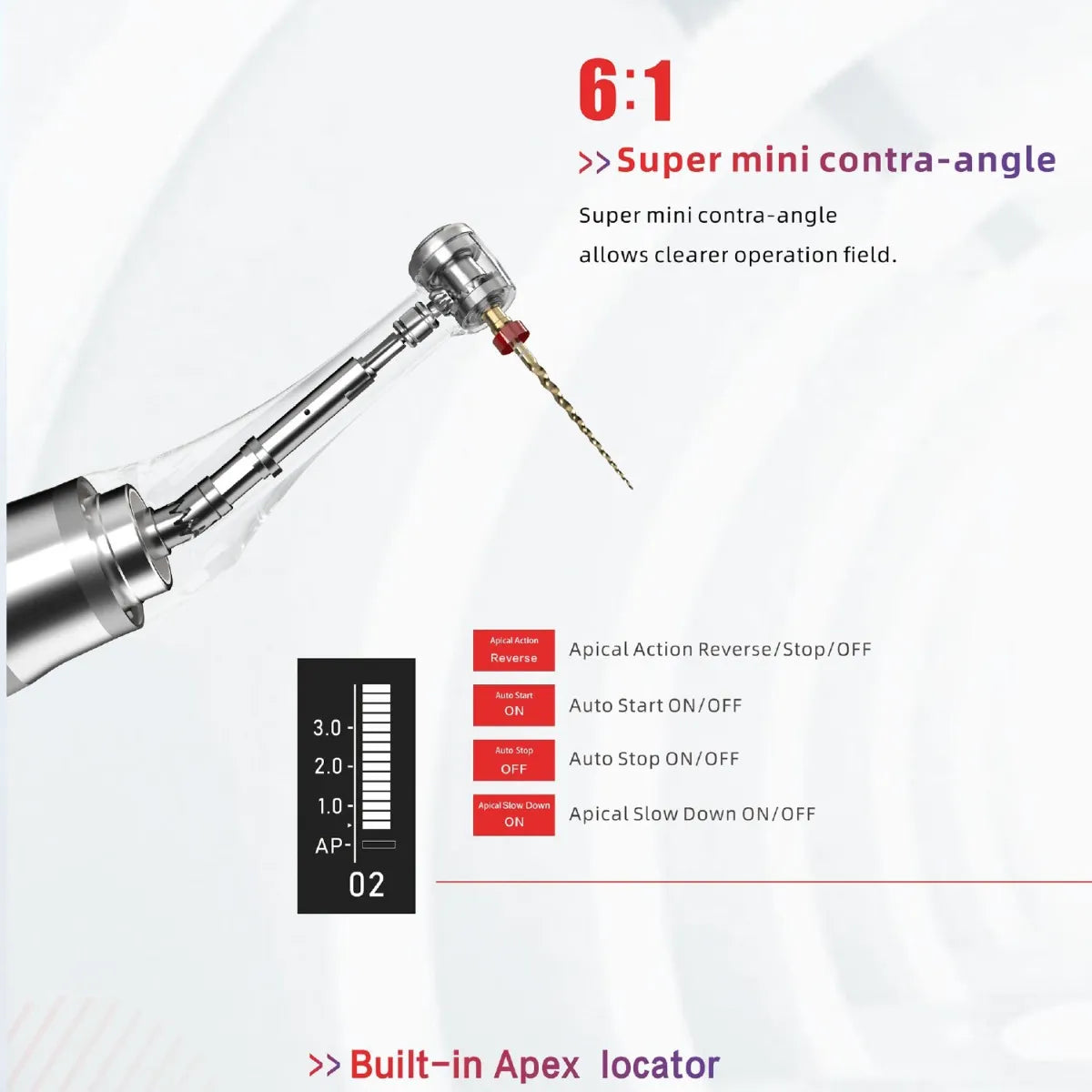

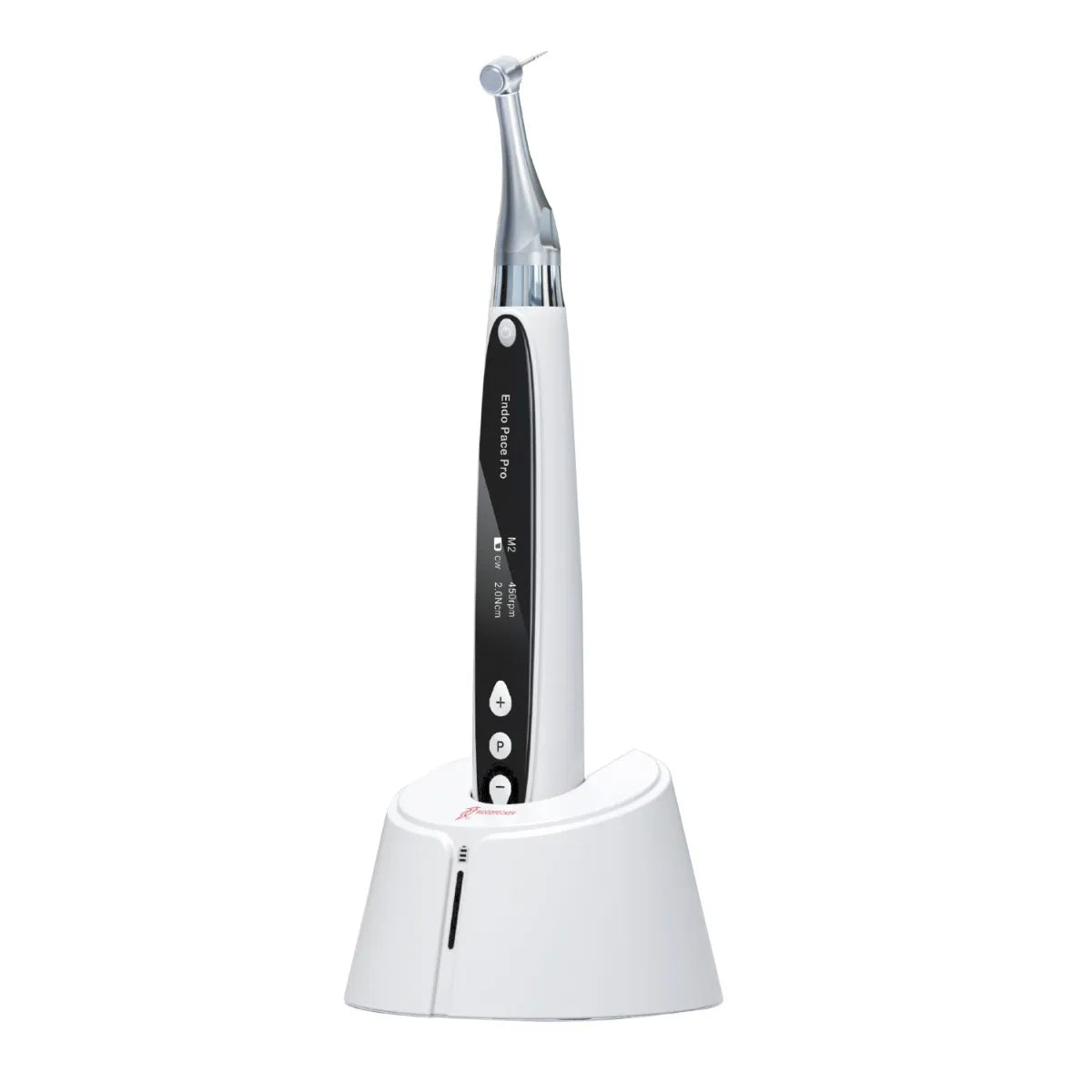

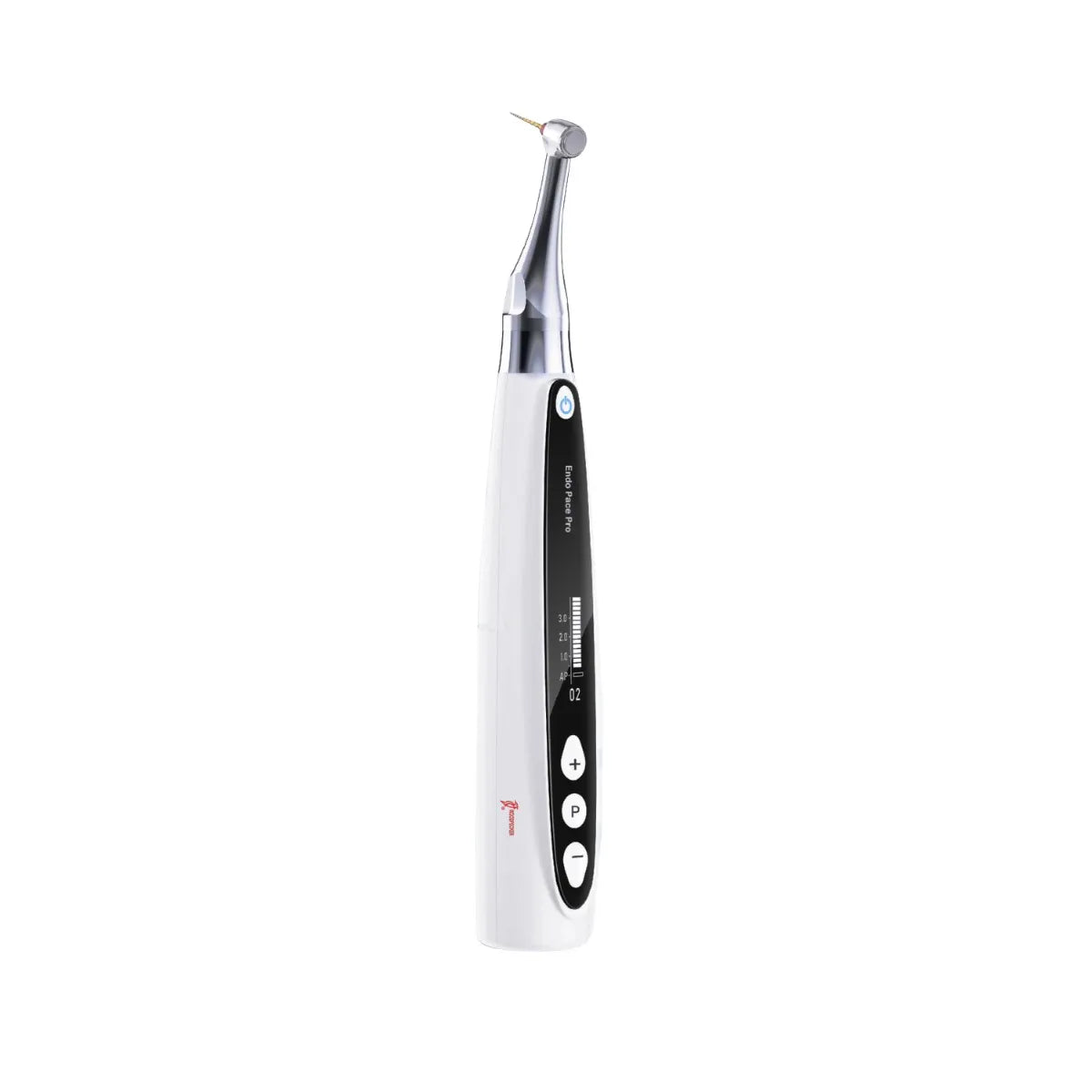

Woodpecker Endomotor Endopace Pro is an updated version of the Endomotor Endopace, designed by Woodpecker, known for its lightweight and high-quality endodontic equipment. The Pro version combines the features of a brushless endo motor with an inbuilt apex locator and a supermini contra angle. The brushless motor utilized in the Endopace Pro operates without traditional mechanical brushes and commutators, offering a more durable and efficient motor system. This high-performance brushless motor provides a wide range of torque (0.4-4.2 Ncm) and speed (100-1500 rpm), ensuring accurate and stable rotation for efficient cutting during root canal preparations. With smoother rotation and lower noise, it facilitates precise and stable cutting even in narrow and curved areas of the root canal. The wireless 6:1 super mini contra-angle handpiece included with the Endopace Pro is compact yet powerful, measuring only 9.7mm8mm6mm. This contra-angle handpiece offers low speed and stable rotation, enabling precise control during procedures. Its 360-degree rotatable design allows for flexible operation and facilitates access to teeth at different angles.
Features:
- Lightweight Handpiece
- Adjustable reciprocating angle
- Accurate control of rotation angles ensures safety
- 360-degree rotatable contra handpiece for more flexible operation
- A compact and powerful 6:1 contra-angle handpiece ensures low speed and stable rotation
- 4 working modes- Forward rotation mode/ reverse rotation mode/reciprocating mode/ATR MODE
- Inbuilt Apex Locator for safer and more efficient treatment.
Key Specifications:
-
Rotate speed:- 100-1200 rpm, 1000-1500 rpm
-
Torque:- 0.4-4.2ncm, 0.4-5 ncm, 4 Ncm
-
Weight:- 106g
-
Handpeice dimensions:- 9.7mm*8mm*6mm
- 2000 mAh Lithium battery
- 5th generation apex locator
Packaging:
Direction To Use:
Preparation:
- Ensure that the device is fully charged or connected to a power source.
- Attach the wireless 6:1 super mini contra-angle handpiece to the motor unit securely.
Powering On:
- Press the power button located on the Endopace Pro motor unit to turn it on.
- The device will initiate and display the available working modes on the screen.
Selecting the Working Mode:
- Use the mode selection buttons on the motor unit to choose the desired working mode:
- Forward Rotation Mode: Enables rotation of the file in a single forward direction.
- Reverse Rotation Mode: Enables rotation of the file in a single reverse direction.
- Reciprocating Mode: Enables back-and-forth reciprocating motion of the file.
- ATR Mode: Activates the unique Auto Torque Reverse mode for file reciprocation at a set angle.
Adjusting the Reciprocating Angle:
- If using the reciprocating mode or ATR mode, adjust the reciprocating angle as needed.
- Use the angle adjustment buttons on the motor unit to set the desired angle within the 20-340 degree range.

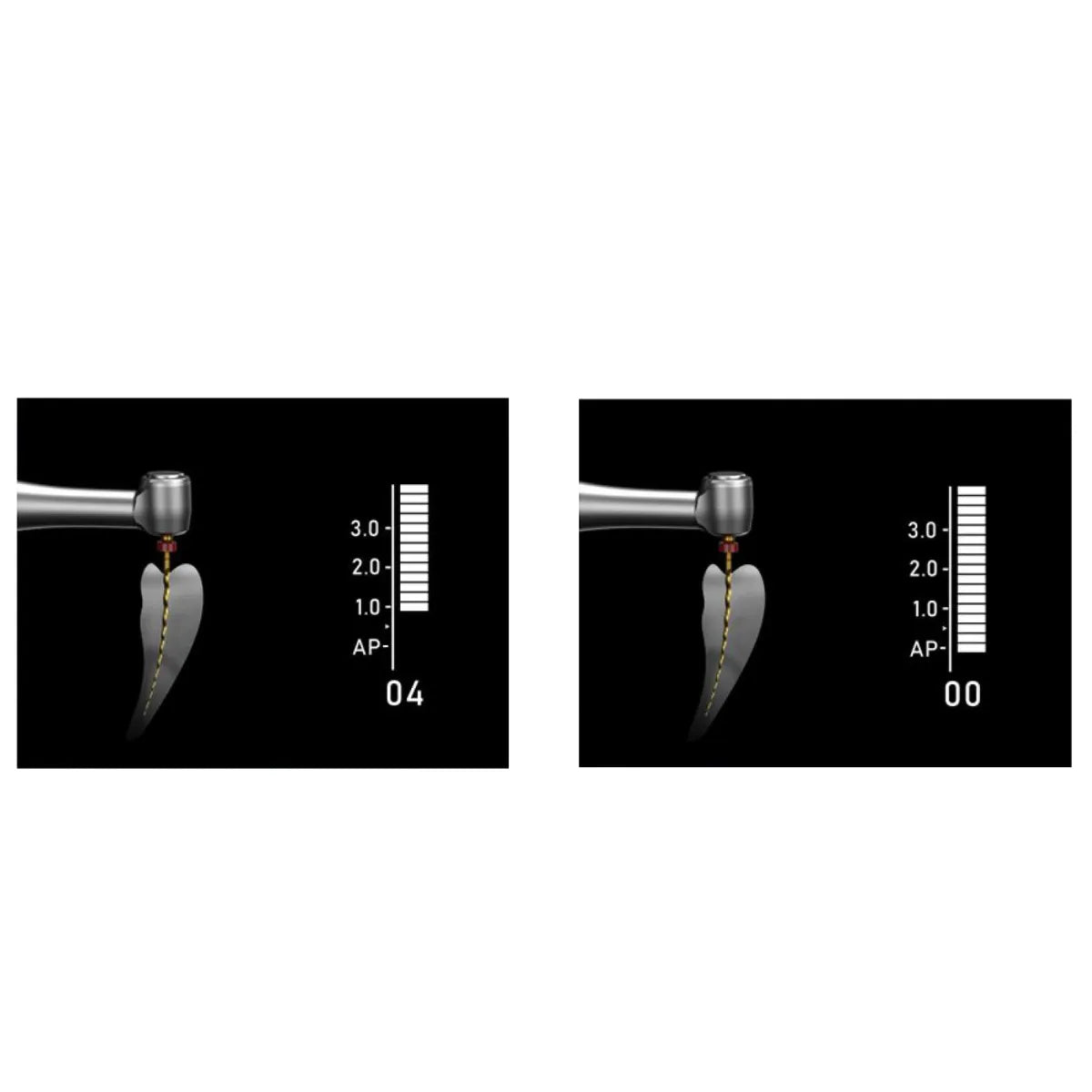

Apex Localization:
- If determining the apex length, make sure the apex locator feature is activated.
- Follow the instructions provided by the manufacturer for apex localization.
- The inbuilt apex locator will assist in accurately determining the length for more precise treatment.
Performing the Procedure:
- Sterilize the contra-angle handpiece and file before use according to standard protocols.
- Position the contra-angle handpiece in the patient's mouth and guide the file into the root canal.
- Maintain a steady and controlled grip on the contra-angle handpiece during the procedure.
- Monitor the device's screen for real-time information, including torque, speed, and length (if applicable).
- Follow proper endodontic techniques and protocols while utilizing the Endopace Pro.
Powering Off:
- After completing the procedure, press and hold the power button on the motor unit to turn it off.
- Disconnect the contra-angle handpiece from the motor unit.
- Clean and disinfect the contra angle handpiece and file thoroughly before storage.
