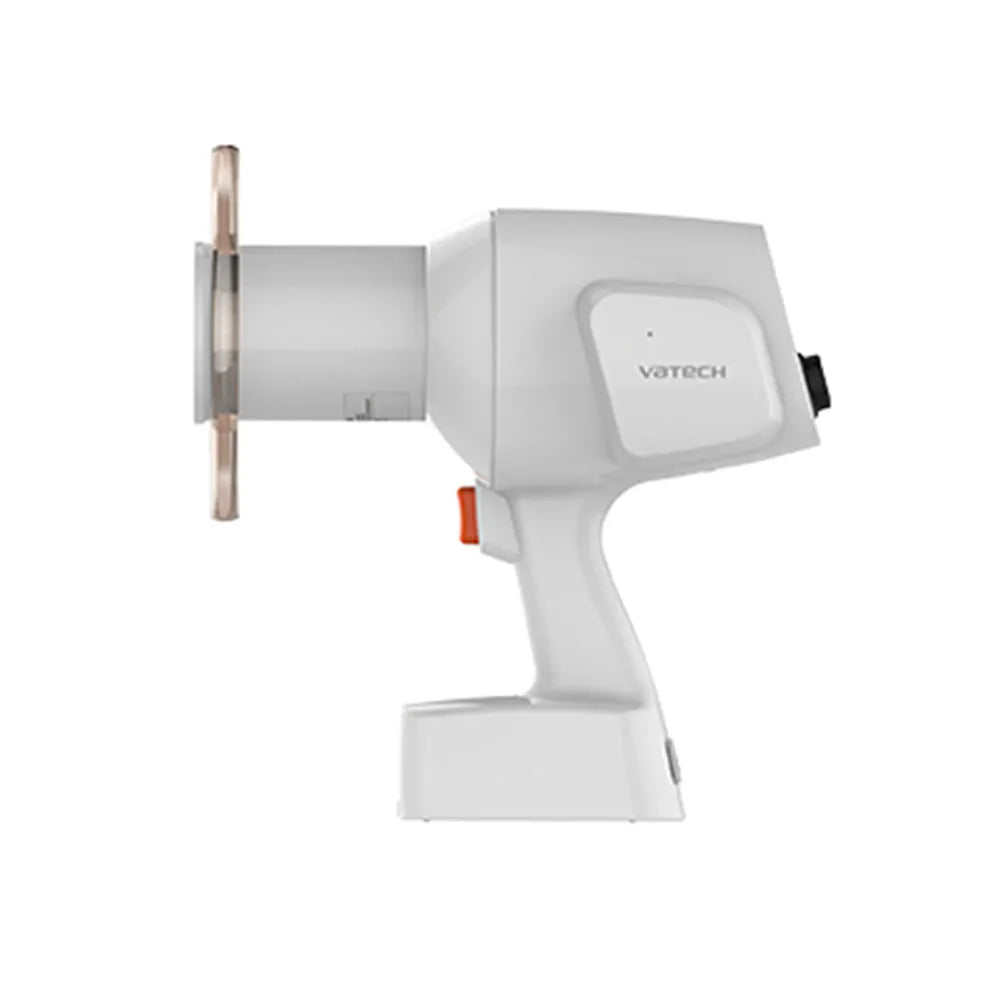

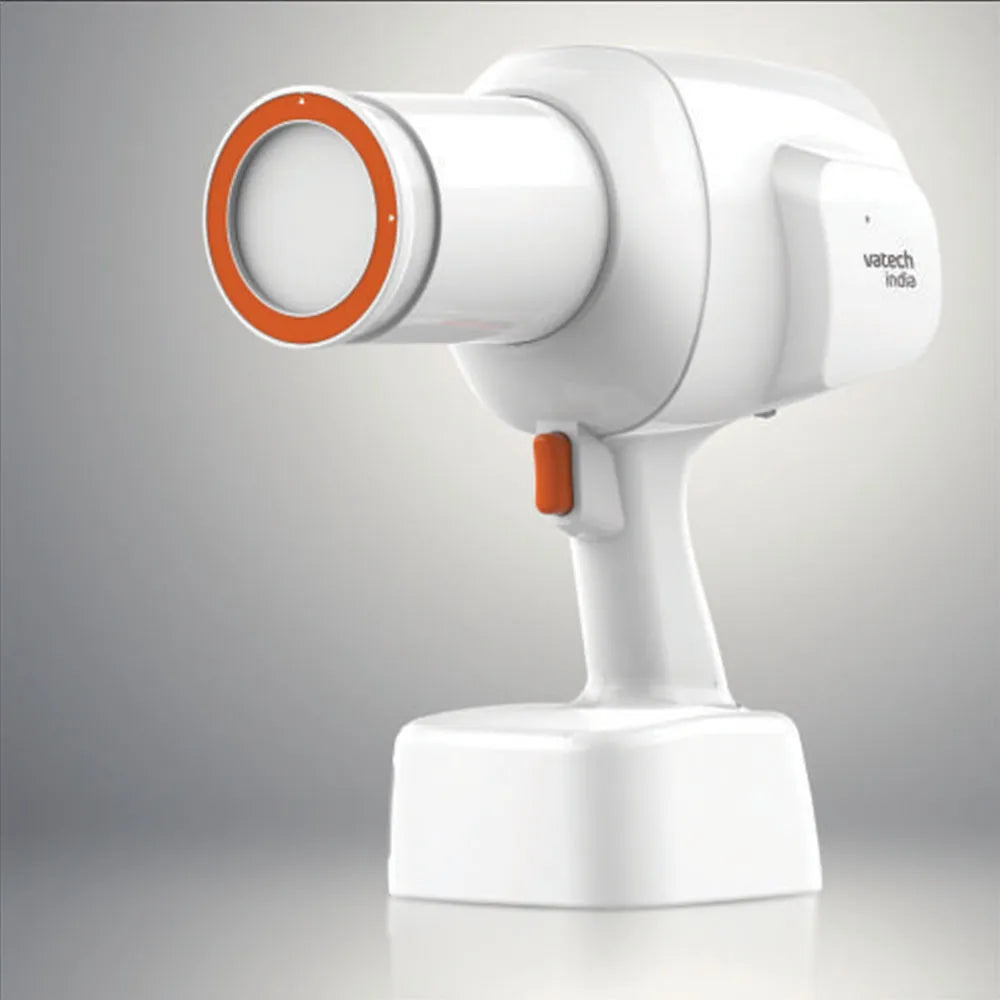

Vatech EZRay Air Plus Portable X-Ray Machine

• Weight : 1.8 Kg
• Focal Spot : 0.4 mm
• Voltage : 65 kV(fixed)
• Current : 2.5 mA (fixed)
• Exposure Time Range : 0.05 - 1.00 sec
• Total Filtration : Min. 1.5 mm AI
• Maximum Duty Cycle : 1:60
• Power Input : 22.2 V

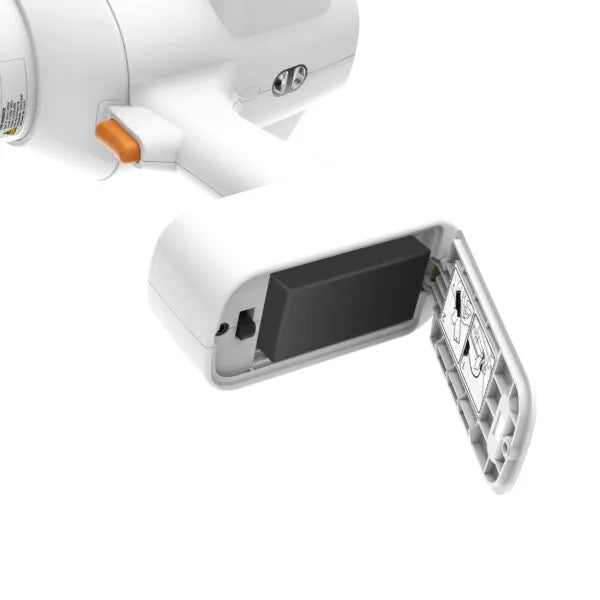

• Battery : Replaceable
• Line Voltage :100-240 V + 10%
• Source to Skin Distance: 200mm
• Optional Accesories: Back Scatter Shield,Carry Case

Packaging:

• 1 x Portable x-ray machine

NOTE: Round Shield will be bought separately as accessory & will not be provided with this product.

Direction To Use:

Preparation:

• Ensure that the machine is placed on a stable surface.
• Connect the machine to a power source using the provided power cord or ensure the battery is adequately charged.

Positioning:

• Position the patient according to the specific imaging requirements.
• Place the machine at the appropriate distance from the target area, maintaining a source-to-skin distance of 200 mm.

Settings Adjustment:

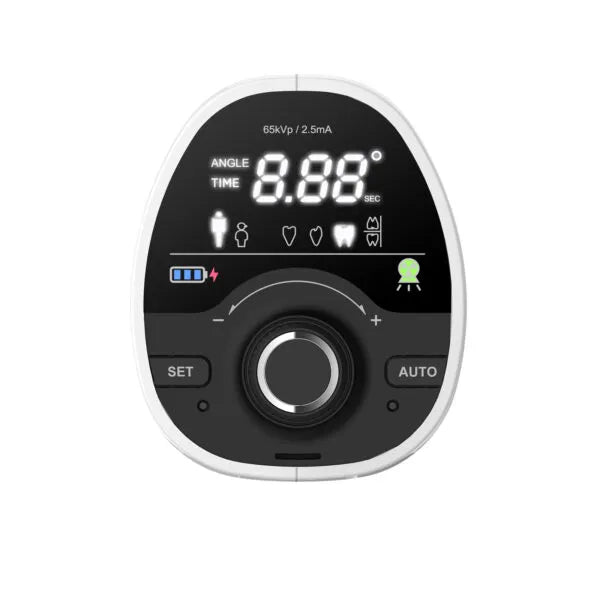

• Use the smart dial interface to select the desired exposure time, within the range of 0.05 - 1.00 seconds.
• Verify that the voltage and current settings are appropriate for the imaging procedure.

Safety Precautions:

• Ensure that all personnel are clear of the X-ray beam path.
• Wear appropriate personal protective equipment (PPE), including lead aprons and thyroid collars, if necessary.

Image Capture:

• With the patient in position and settings adjusted, activate the X-ray exposure by pressing the designated button or trigger.
• Remain clear of the X-ray beam during exposure.

Image Review:

• After exposure, review the captured image for quality and diagnostic suitability.
• If necessary, repeat the imaging process for additional views or adjustments.

Post-Exposure Procedures:

• Turn off the machine and disconnect it from the power source if no further imaging is required.
• Ensure proper storage of the machine and any accessories.

Maintenance:

• Periodically inspect the machine for any signs of damage or malfunction.

Optional Accessories:

• Utilize optional accessories such as the back scatter shield or carry case as needed for enhanced usability and safety.

Training and Compliance:

• Ensure that all personnel operating the machine are properly trained and adhere to radiation safety regulations and guidelines.
